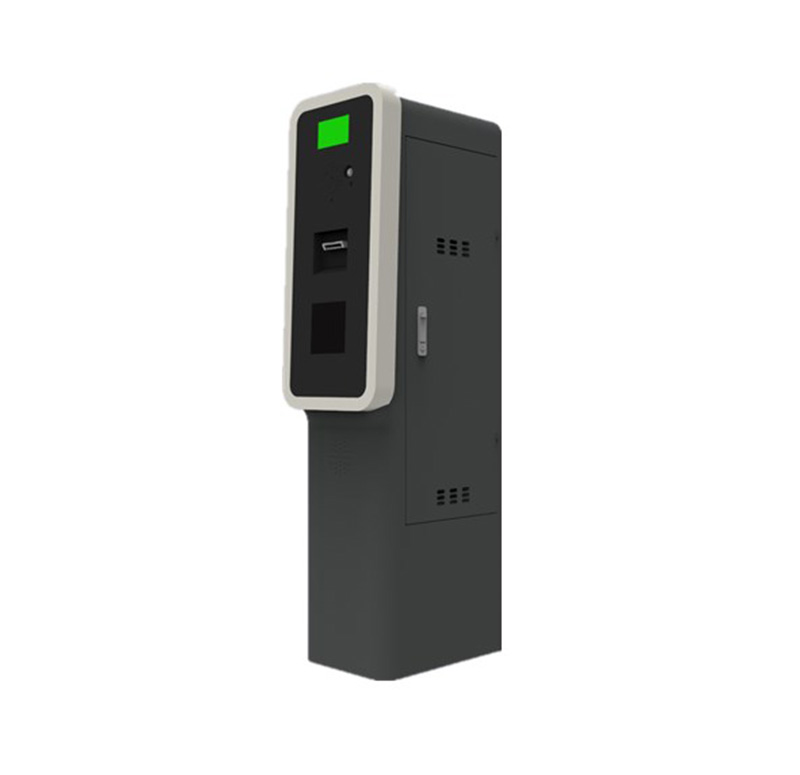

Exit station barcode / QR code ticket verifier YP1

The parking exit terminal-- parking ticket validator (also known as exit ticket verifier) are opening devices used to open...

Share
PRODUCT DESCRIPTION

Exit station barcode / QR code ticket verifier YP1

The parking exit terminal-- parking ticket validator (also known as exit ticket verifier) are opening devices used to open exit barrier gates once a ticket has been inserted by a patron. It includes a built-in proximity card reader which permits monthly customers to exit with a simple wave of their card.


The interior device is mounted on sturdy sliding tracks which glide open with just a pull, allowing for easy maintenance and retrieval of the tickets.


Exit station barcode / QR code ticket verifier YP1

Features

Cold-rolled steel housing

Built-in loop detector

Motorized barcode reader to read and swallow tickets

Proximity reader for monthly parking

Optional built-in Heater

Optional built-in Intercom Substation

Standard TCP/IP communication protocol


Technical Parameters
Model: YP1 Exit station ticket verifier

Built-in card reader: IC/ ID Optional

Weight: 60 KG

Power: DC 24V, AC110V 60HZ/ AC220V 50HZ

Temperature: -35℃ ~ +65℃

Power consumption: 30W ( normal );120W(max)

Communication: TCP/ IP

Dimension (mm): 435mm(L)×330mm(W)×1360mm(H)


Case Reference

Exit station barcode / QR code ticket verifier YP1


Video link:
